Touch control charpy impact testing machine
Brand :XIANGLI
Product origin :China
Delivery time :10 days
Supply capacity :1000
Touch control operation, automatic printing testing reports, can also be stored through a USB flash drive.
Test accuracy and reputability are very good.
It can test a variety of plastic .
Product specification
Touch control charpy impact testing machine accords with the standards ISO 179、ISO 180、GB 1043、GB/T1843、JB/T 8762、JB/T 8761.
It is mainly used in measuring the tension impact-toughness resistance of the non-metal materials such as Hard plastic, glass, ceramics, nylon, electrical insulation materials and cast stone etc.
This machine is a kind of simple structure, convenient operation, data accurate and reliable testing instruments.
Product advantage

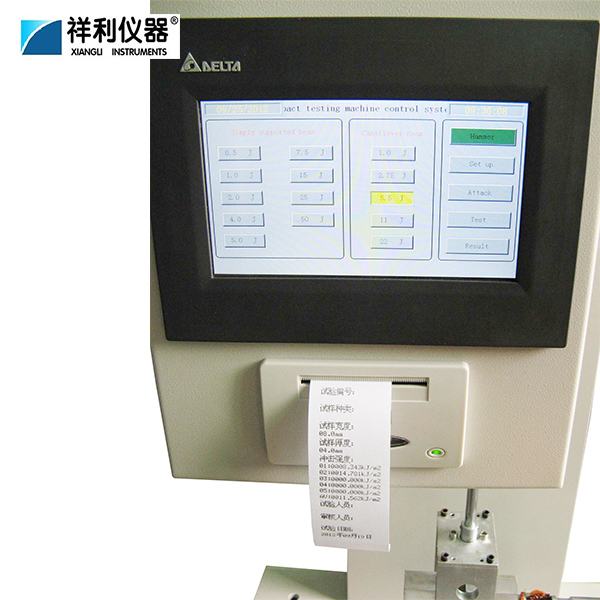

Touch control charpy impact testing machine uses a bilingual touch screen display operation, PLC module control, can store five sample data to calculate the average, and double print test report in English, simple operation, stable performance.
Particularly prompting: Touch control charpy impact testing machine is the type charpy impact testing machine. It should be upgrade cantilever girder fit together charpy, charpy, pipe impact of full range, all kind of standard, and operation is convenience. If the user need, please relation with our corporation.
Product parameter
1. Touch control charpy impact testing machine: Max impact energy is 50J
2. Error: <±0.5% when the impact energy is biger than 5J.
3. Size: 500×400×800
4. Weight: 100kg
5. Environment temperature: 15~35℃
6. Others
| XJJB-5 | XJJB-50 | |
| Velocity at impact | 2.9m/s | 3.8m/s |
| Impact energy | 1J, 2J, 4J, 5J | 7.5J, 15J, 25J, 50J |
| Center distance of impact | 230mm | 395mm |
| Angle of elevation | 160° | |
| Radius of the pendulum | R=2±0.5mm | |
| Radius of the gag | R=1±0.1mm | |
| Included angle of impact | 30°±1° | |
| Span of the gag | 40mm,60mm,70mm | 60mm, 70mm, 95mm |
Test sample size
| Charpy sample | Length （L） | Width （Y） | Thickness （X） | Support span（b ） |
| 1 | 80±2 | 10±0.5 | 4±0.2 | 60 |
| 2 | 50±1 | 6±0.5 | 4±0.2 | 40 |
| 3 | 120±2 | 15±0.5 | 10±0.5 | 70 |
| 4 | 125±2 | 13±0.5 | 13±0.5 | 95 |
Maintain
1. Open the machines everyday periodically.
2. Operated by the specialist.
3. Touch control charpy impact testing machine and accessories must be deposit in the dry environment.
4. After testing the accessories should be added wiping grease rust, and remove the rust great before test.
5. When the test finished, the power should be closed to avoid any accident.
